Full Automatic Liquor Packaging Line Dropoff Case Packer For PET To Carton

Product Categories
Zhangjiagang Navan Industrial Co., Ltd.
Contact Now

Full Automatic Liquor Packaging Line Dropoff Case Packer For PET To Carton

  • 1
  • 2

Brand Name : NAVAN MACHINE

Model Number : NF-150A Series

Certification : CE,ISO

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C , T/T / Cash / West Union / MoneyGram

Supply Ability : 15-25 Sets Per Months

Delivery Time : 20-45 Working Days After Receiving Your Deposit Payment

Packaging Details : Wooden Case Package/PE Film Package

Automatic Grade : Automatic

External Dimension : L5050×W3300×H2100mm

Size Of The Shrink Tunnel : L3700×W920×H1750mm

Packing Speed : 8-15bag/h

Working Air Pressure : 0.6-0.8Mpa

After-sales Service Provided : Engineers Available To Service Overseas/Online Support

Contact Now

Full Automatic Liquor Packaging Line Dropoff Case Packer For PET To Carton

This series of cuff sleeve shrinkable packaging machine is suitable for all kinds of bottles, such as cans, mineral water, beer,glass bottles, beverages, cartons, etc., which are heat-shrinkable packaging without or with bottom brackets.Automatic film wrapping machine only needs manual placement of products, the machine automatically completes a series of actions such as pushing,sealing and cutting, thermal shrinkage packaging, which can reduce labor intensity and improve work efficiency.

Product Paramenters:

External dimension
L5050×W3300×H2100
Weight of the whole machine
1.2t
Size of the shrink tunnel
L3700×W920×H1750
Max. size of the package
L600×W400H350
Packing speed
8-15bag/h
Width of the convey belt
920(±200)
Power supply
380V
Working air pressure
0.6-0.8Mpa
Power
20kw

Detailed Images:

Full Automatic Liquor Packaging Line Dropoff Case Packer For PET To Carton
Control System.
The beverage film packaging machine adopts imported PLC program to automatically control, with stable performance and precise control.
Full Automatic Liquor Packaging Line Dropoff Case Packer For PET To Carton

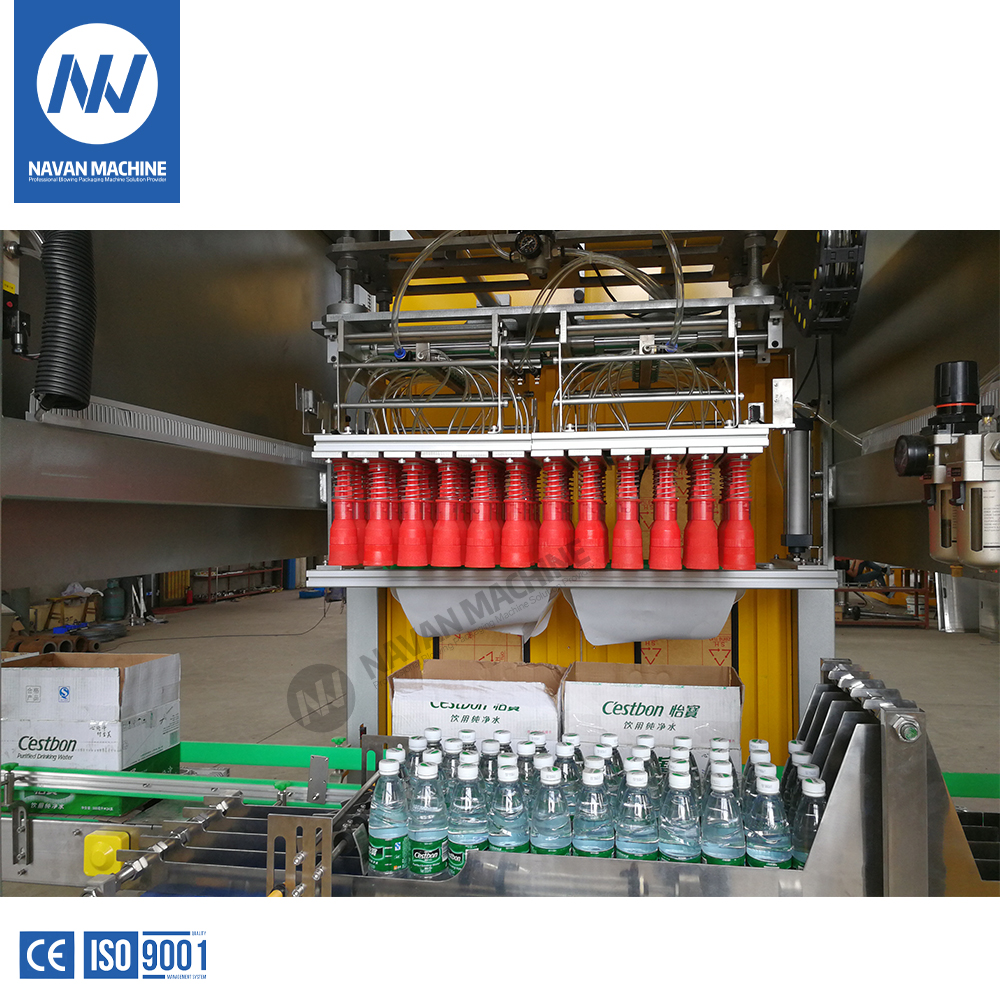

The grab head part of the grab boxer
The grab head part of the grab boxer uses the grab head to fill and deflate to grasp and release the bottles. Through mechanical operation, pneumatic and electric control, the bottles are accurately and reliably loaded from the bottle conveying table into the box.
Full Automatic Liquor Packaging Line Dropoff Case Packer For PET To Carton

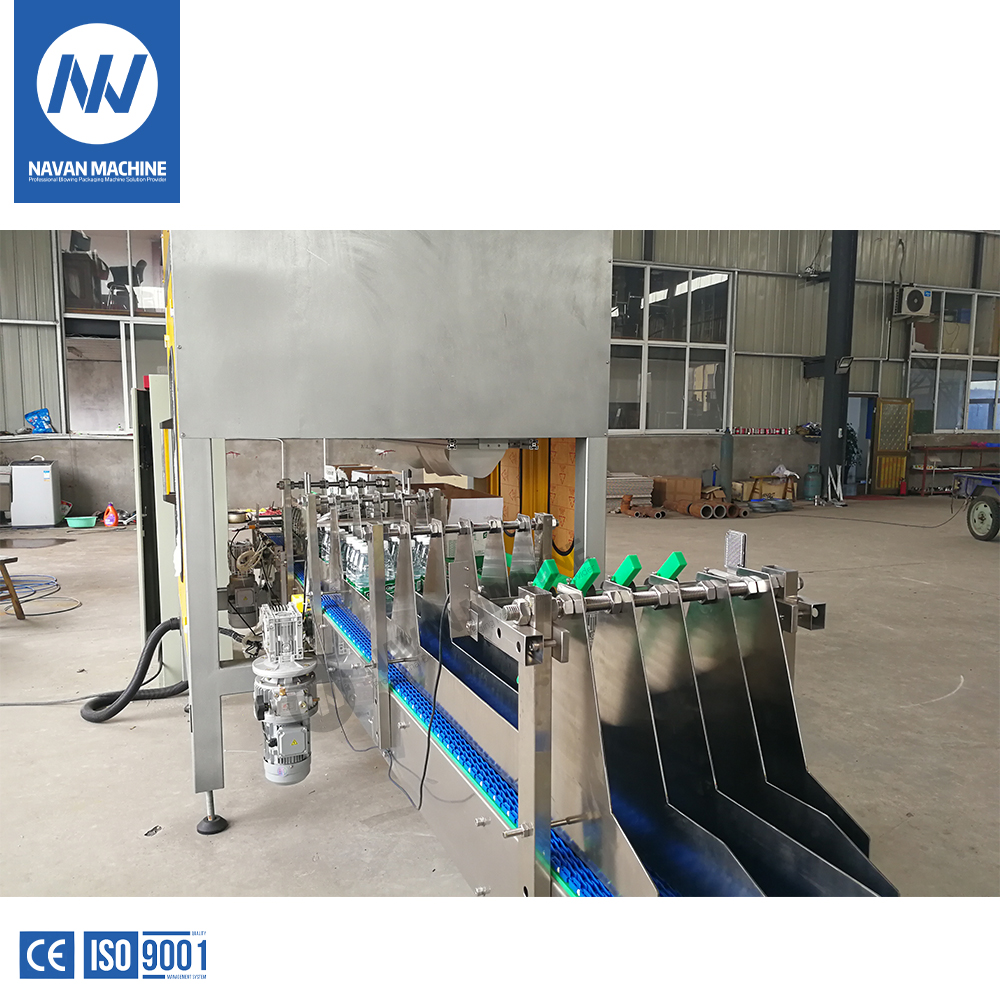

Bottle unscramble part
The moving device controlled by the servo system sends the bottles conveyed in a single row to each pass of the multi-row conveyor chain in turn, so that the conveying of one row of bottles becomes multiple conveying. The advantage is that the conveying of the bottles is almost uninterrupted.
